Justin H. Núñez




Location: Hyde Park, UT
Joined: 24 Aug 2007
Likes: 1 page

Spotlight topics: 1
Posts: 142

Feedback score: None
PostPosted: Tue 13 Apr, 2010 11:23 am    Post subject:         Reply with quote

Yes, that is most excellent work.

What will the suspension be like and how will it hang?

"Nothing in fencing is really difficult, it just takes work." - Aldo Nadi
View user's profile Send private message
Christian Böhling
Industry Professional



Location: Germany
Joined: 27 Jan 2010

Spotlight topics: 1
Posts: 107

Feedback score: None
PostPosted: Tue 13 Apr, 2010 12:37 pm    Post subject:         Reply with quote

Thank you very much for your kind words Happy

There will be two suspension loops to be fixed to the sword belt... sometimes those swords were found acompanied with small brass figure heads which are fixed to the leather straps which are fastened to the brass rings at the scabbard, so you could fasten the sword scabbard like with two "buttons"...

But this is not for shure as the swords often were found in a funeral burial and the metal parts survived only as a lump of parts which are not certainly understandable.

The celtic variants of this type of sword seem to have been carried at a sword-chain, maybe some of the corroded pieces of metal in the lumps belonged to similair sword chains, though they seem to have been uncommon in Germania.

So this is unsolved....

BTW: I left the hammered surface of the scabbard even if I strongly believe in a very fine surface finish of the iron scabbards. But this "forge-finish" has a very special look, also I left the special finish of the polished scale on the blade, it gives a very ancient look of this sword. Sad, but the pics don´t show the light reflexions on the blade and scabbard right. It really looks great!

www.archaeoschmiede.de
www.eisenzeithaus.de
View user's profile Send private message Visit poster's website
Shahril Dzulkifli




Location: Malaysia
Joined: 13 Dec 2007
Likes: 1 page

Posts: 1,265

Feedback score: None
PostPosted: Thu 15 Apr, 2010 6:05 pm    Post subject: Germanic Iron Age Weapons         Reply with quote

You know what Christian, if you watch Warriors with Terry Schappert: Barbarian Massacre you can see how your country looks like during Arminius' time. Host Terry Schappert even battled reenactors dressed as Germanic warriors and Roman legionaries in the famed Teutoburg Forest and your famous creation, the Cherusker sword (below) was shown briefly in the program.

“You have power over your mind - not outside events. Realize this, and you will find strength”

- Marcus Aurelius
View user's profile Send private message
Christian Böhling
Industry Professional



Location: Germany
Joined: 27 Jan 2010

Spotlight topics: 1
Posts: 107

Feedback score: None
PostPosted: Fri 16 Apr, 2010 1:24 am    Post subject: Re: Germanic Iron Age Weapons         Reply with quote

Shahril Dzulkifli wrote:
You know what Christian, if you watch Warriors with Terry Schappert: Barbarian Massacre you can see how your country looks like during Arminius' time. Host Terry Schappert even battled reenactors dressed as Germanic warriors and Roman legionaries in the famed Teutoburg Forest and your famous creation, the Cherusker sword (below) was shown briefly in the program.


Yes, I hope you like it, because we helped the team from DC much to take the scenes in the documentary.....you can even see our ironage-house in it... and most of the weapons you can see there are made by my poor hands...
although I must say, to my taste it was not serious enough (I don´t like to reduce the past on warfare), but that´s what most people want to see...BUT: the sword used in this film and also the sword you can see in the image below are not from Albion´s "Cherusker"-series, they are custom made by my hands in my forge.
(Good to know that someone can see my swords in a movie in Malaysia!! Wink Makes me a bit proud!)

Greetings

Chris

www.archaeoschmiede.de
www.eisenzeithaus.de
View user's profile Send private message Visit poster's website
Shahril Dzulkifli




Location: Malaysia
Joined: 13 Dec 2007
Likes: 1 page

Posts: 1,265

Feedback score: None
PostPosted: Fri 16 Apr, 2010 4:37 pm    Post subject: Germanic Iron Age Weapons         Reply with quote

Christian,
Warriors with Terry Schappert: Barbarian Massacre is not a movie. It's a documentary produced by the History Channel. Here in Malaysia we do have that channel.

“You have power over your mind - not outside events. Realize this, and you will find strength”

- Marcus Aurelius
View user's profile Send private message
Christian Böhling
Industry Professional



Location: Germany
Joined: 27 Jan 2010

Spotlight topics: 1
Posts: 107

Feedback score: None
PostPosted: Sat 17 Apr, 2010 1:58 pm    Post subject: Re: Germanic Iron Age Weapons         Reply with quote

Shahril Dzulkifli wrote:
Christian,
Warriors with Terry Schappert: Barbarian Massacre is not a movie. It's a documentary produced by the History Channel. Here in Malaysia we do have that channel.


Hey,Shane: if you read that I wrote "documentary"....

I live three kilometers away from the museum of the Battlefield Site of Kalkriese (Battle of Teutoberg forest). I am at home here! And if you have the documentary on DVD you can see our Ironage house (which I helped to build) and I was with the "movie"-shots. Is that enough for you?

www.archaeoschmiede.de
www.eisenzeithaus.de
View user's profile Send private message Visit poster's website
Christian Böhling
Industry Professional



Location: Germany
Joined: 27 Jan 2010

Spotlight topics: 1
Posts: 107

Feedback score: None
PostPosted: Sat 01 May, 2010 5:18 am    Post subject: Next La Tene         Reply with quote

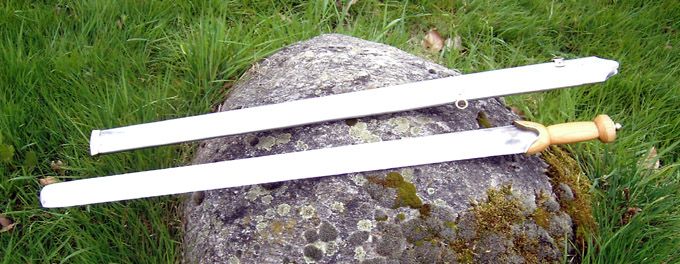

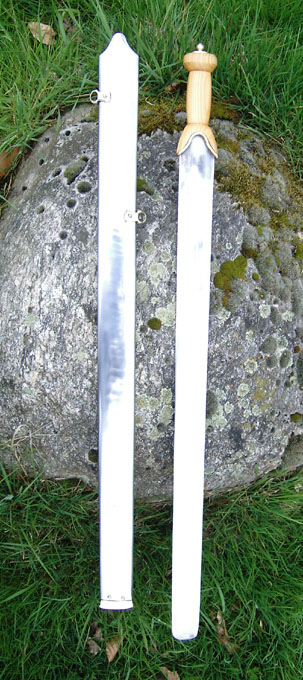

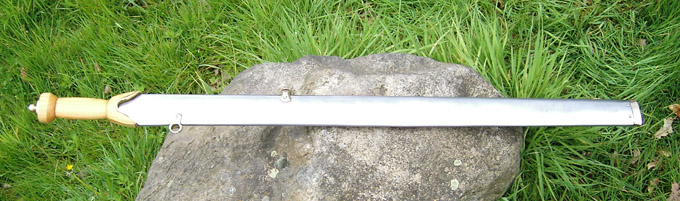

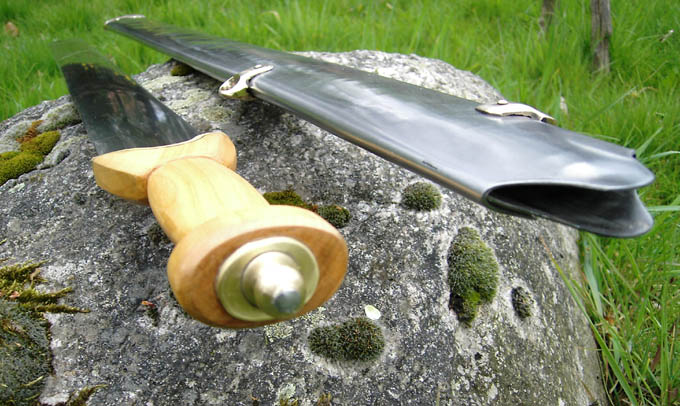

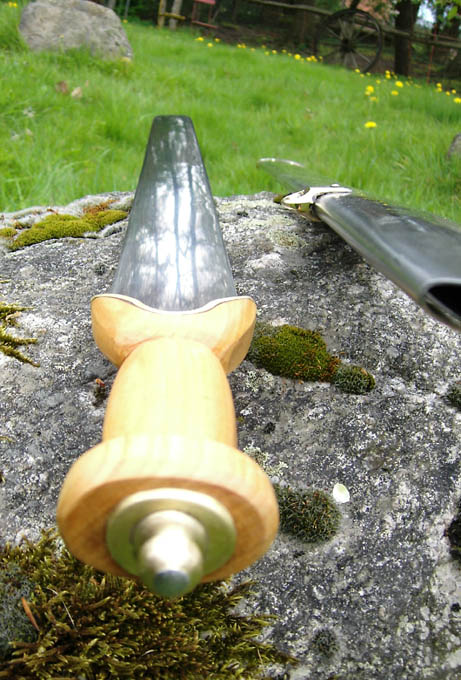

Hi, this is the next one of the germanic late La Tene Swords SIIa from the Nienbüttel Type:

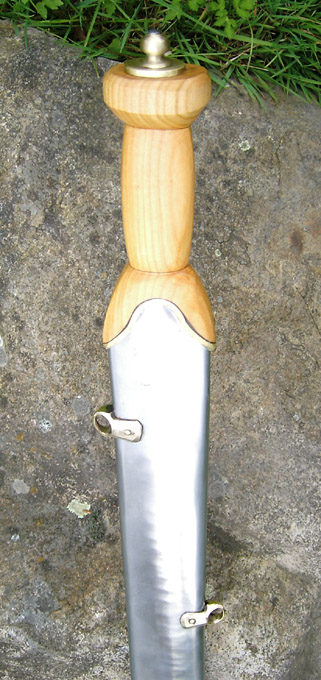

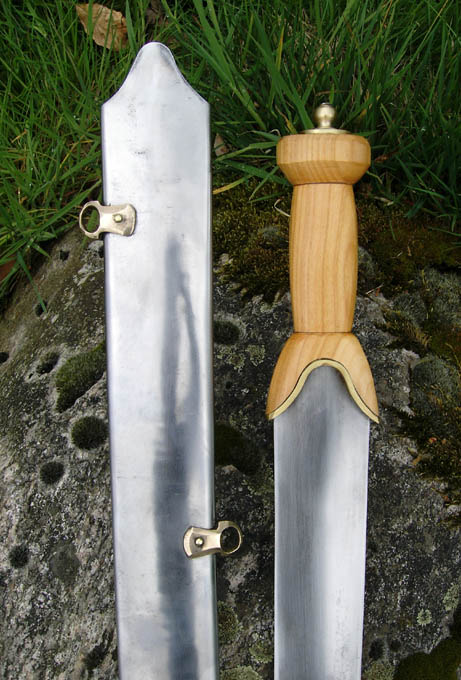

This one has a bronze guard instead of the iron guard of the last one. Also the wooden hilt is a little bit different to the other one. Also the steel scabbard is polished. Also the bronze knob on the pommel is smaller but has a bronze plate under it.....
This was my work for the last two weeks...

What do you say?


Cheers

Chris



 Attachment: 106.61 KB


 Attachment: 100.59 KB


 Attachment: 92.57 KB


 Attachment: 90.89 KB


 Attachment: 101.11 KB


 Attachment: 106.47 KB


 Attachment: 88.99 KB


 Attachment: 101.73 KB

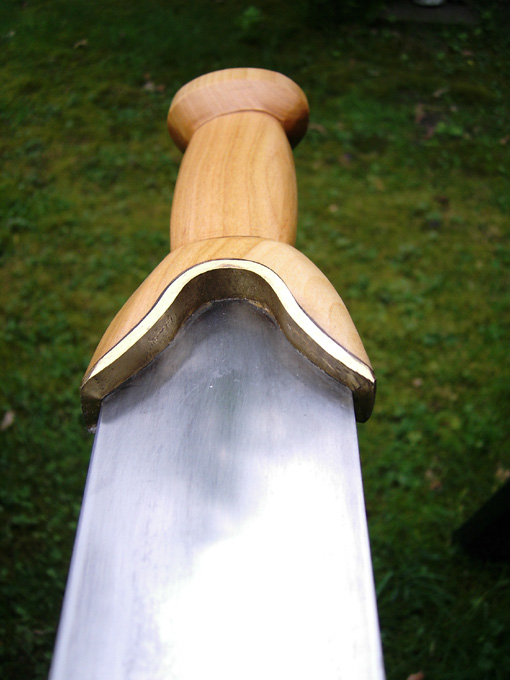

The guard has to fit exactly to the lenticular shape of the blade

www.archaeoschmiede.de
www.eisenzeithaus.de
View user's profile Send private message Visit poster's website
Christian Böhling
Industry Professional



Location: Germany
Joined: 27 Jan 2010

Spotlight topics: 1
Posts: 107

Feedback score: None
PostPosted: Sun 02 May, 2010 1:21 am    Post subject:         Reply with quote

Hmm, seems that this topic is slowly dying out Wink
www.archaeoschmiede.de
www.eisenzeithaus.de
View user's profile Send private message Visit poster's website
Ragimond Luebke




Location: MI
Joined: 06 Sep 2007

Posts: 4

Feedback score: None
PostPosted: Sun 02 May, 2010 5:48 am    Post subject: Germanic Iron-Aged Weapons         Reply with quote

For all those over across the pond .Can you get pic or having any pics of the scabbards...
Thanks..I'm looking for any more pics on the vimose sword or seax...
View user's profile Send private message Visit poster's website Yahoo Messenger
Petr Florianek
Industry Professional




Joined: 01 Oct 2008

Posts: 136

Feedback score: None
PostPosted: Sun 02 May, 2010 7:16 am    Post subject:         Reply with quote

we will not let it die!
i like the first one, but i like the second even better!

I must get to powerhammer to break some material i have here and make some of this goodness too!
View user's profile Send private message Visit poster's website
Robert P. Wimmers
Industry Professional



Location: Dieren, The Netherlands
Joined: 24 Nov 2008

Posts: 44

Feedback score: None
PostPosted: Tue 19 Mar, 2013 9:30 am    Post subject:         Reply with quote

This topic has been a great inspiration and help to me!! Thank you so much, guys! Here is the result, scabbard fiitings based on Harsfelt, scabbard makeup (glued ash slats) Vimose:


 Attachment: 171.67 KB
[ Download ]

 Attachment: 181.8 KB
[ Download ]

 Attachment: 173.29 KB
[ Download ]
View user's profile Send private message
Matthew Harrington




Location: laska
Joined: 30 Jul 2012

Posts: 85

Feedback score: 0%
(1 total ▮ 0% positive)
PostPosted: Tue 19 Mar, 2013 2:13 pm    Post subject:         Reply with quote

Robert P. Wimmers wrote:
This topic has been a great inspiration and help to me!! Thank you so much, guys! Here is the result, scabbard fiitings based on Harsfelt, scabbard makeup (glued ash slats) Vimose:


Very nice Robert. I like it. Happy
View user's profile Send private message
Ragimond Luebke




Location: MI
Joined: 06 Sep 2007

Posts: 4

Feedback score: None
PostPosted: Tue 19 Mar, 2013 2:20 pm    Post subject: Germanic Iron-Aged Weapons         Reply with quote

Looks bloody great Robert.. Big Grin PLease do more -never enuff out there...
Besides that is one of my favor style of blades...... Big Grin
View user's profile Send private message Visit poster's website Yahoo Messenger
William P




Location: Sydney, Australia
Joined: 11 Jul 2010

Posts: 1,523

Feedback score: None
PostPosted: Thu 21 Mar, 2013 1:58 am    Post subject:         Reply with quote

Christian Böhling wrote:
Hi Peter,

you are absolutely right! The economic use of material that the original material show us was impressing me much, when nowadays modern craftsmen say "forge thick - grind thin", they tried to use all material which was availlable to "forge close to the end...." So I formed the grip out of the full material when most modern craftsmen would do it by cutting it out...

But what really impresses me is what I have seen through the finds of Illerup Ådal, I have been to Moesgaard several times and found blades which were finished so acourate - we both know the octagonal blade from that site, we have had it here at our museum where I am employed in Kalkriese for the time of our special exhibithion 2009! I have done a few lance heads from Illerup to see how this is to be done without modern tools - and I was really shocked when Jörgen Ilkjaer said, they must have done thousands of them inner a few years just to prepare on one attacking of Jutland.

At the moment I work on a so called roman spatha from Illerup with octagonal blade...can only show you a small impression of it. I first forged it and then profiled it´s octagonal cross section with a rasp like knife makers would have done it, it was a goddam piece of hard work to do this, now I can make the finish and polish it...But I should have done it from damaskus-steel...but I have to lern much before..

I saw your Åsby-reconstruction at albion and: yes! That meets with the original absolute in any detail! On several comparable finds I have seen some bronze-parts attached to the grip I can not explain myself, maybe we both can some day solve this problem... Good work you are doin there (but I hope the Chasuari will buy my weapons first, hehe Wink ) But you bring this exeptional early germanic weapon-"industry" to a greater public! Tak you for that!!

Next images show some pieces I have done: a LaTéne Type lance and a Illerup lance, and an unfinished octagonal Illerup blade, what do you think about it?


I realise this is repying to a post QUIE a ways from the past, but I'm just curious about that very jagged and scallopped spear blade, is that one from Illerup or LaTene?

and how do we know it was made like that as opposed to it just being a VERY corroded normal lance head?

Othrwise I am VERY fascinated to once again see spears/swords/ daggers etc with such 'fantastical' features
View user's profile Send private message Send e-mail
Robert P. Wimmers
Industry Professional



Location: Dieren, The Netherlands
Joined: 24 Nov 2008

Posts: 44

Feedback score: None
PostPosted: Thu 21 Mar, 2013 2:41 am    Post subject: Horn handled Langsax         Reply with quote

Thanks guys!
Here is a langsax I made for an archeologist for his PhD, as he wanted to show different ways of reproduction of a piece he had done the conservation of. The handle is of a single piece of horn and extends over the blade, as the original data suggests. The horn was deformed to shape using heat, as horn when heated to over 180 degrees celcius loses its "shape-memory" and will remain in the shape it was formed into. I used a vice to crimp the hot horn over the blade, setting the whole thing with boneglue. Then I shaped the handle with file and sandpaper.



 Attachment: 91.98 KB
[ Download ]

 Attachment: 141.09 KB
[ Download ]
View user's profile Send private message
Shahril Dzulkifli




Location: Malaysia
Joined: 13 Dec 2007
Likes: 1 page

Posts: 1,265

Feedback score: None
PostPosted: Mon 29 Sep, 2014 10:09 am    Post subject: Germanic Iron Age Weapons         Reply with quote


Christian, this La Tène sword of yours looks a bit strange because its blade is square-pointed just like its scabbard.

“You have power over your mind - not outside events. Realize this, and you will find strength”

- Marcus Aurelius
View user's profile Send private message
Harry Marinakis




PostPosted: Tue 16 Dec, 2014 7:31 am    Post subject:         Reply with quote

I am researching Iron-Age scabbards, with emphasis on non-metallic scabbards (i.e., scabbards for non-professional DIY projects). Is this an accurate summary of Iron-Age scabbards? I would appreciate comments and corrections, with very specific references please.

Most Iron-Age scabbards were made from bronze (Oakeshott 1960, Ch. 3) or iron (Stead 2006, p. 9), but a small subset of scabbards were made from organic materials (wood and leather). These organic scabbards are the focus of this section. There are significant differences between continental and British Iron-Age swords and scabbards.

The Iron Age scabbards that were made primarily from organic materials had a wood core that was wrapped either with a leather cover or metal bands. The scabbard was lined with hair-covered animal hides. A metal locket was wrapped around the throat, on the back of which was attached a metal bracket, but some scabbards had suspension rings instead of brackets. The scabbard was hung vertically from a baldric. A long iron chape was attached to the tip of the scabbard, and could extend up the edges for the full length of the scabbard. The chape often had a bulbous decorative finial at the tip. The chape often held a decorative metal plate on the front of the scabbard. Designs were engraved on the locket and chape plates.

Some wood cores were carved from a single piece of wood that was carved with a transverse cross section in the shape of a "C" (Stead 2006, p. 58 and figure 12). The wood wrapped around the front and both edges of the sword; the back was left open. Alternately, wood cores were made from two long, thin slats of wood that were warped around the sword (Stead 2006, p. 58). Finds of mineral-preserved wood cores show that willow, poplar, ash, lime, maple and cherry were used (Stead 2006, p. 58).

Scabbards were lined with hair-covered animal hides (Oakeshott 1960, Ch. 3).

The wood core was held together with a leather cover that wrapped all the way around or, alternatively, with transverse metal bands (Stead 2006, p. 58). In the case of the "C"-shaped scabbard, the leather covered the open back of the wood core.

The British scabbards generally have a locket with a suspension bracket mounted to the back of the locket (Stead 2006, p. 11 and fig. 5). Some scabbards instead had two suspension rings, one mounted on either side of the scabbard (Stead 2006, catalog #110, 112, 114 and 118). There is no direct evidence to suggest whether a belt or a baldric was used to suspend the scabbard. However, contemporary reliefs from Ninevah and Nimrud in the neo-Assyrian Empire (dated 900-700 B.C.) show scabbards suspended from baldrics (Oakeshott 1960, Ch. 3).



References

Cameron, Esther A. 2000. Sheaths and Scabbards in England AD400-1100. BAR British Series 301. Oxford, England: Archaeopress.

Oakeshott, R. Ewart. 1960. The Archeology of Weapons. London: Lutterwoth Press.

Stead, I.M. 2006. British Iron Age Swords and Scabbards. London: The British Museum Press.

http://www.britishmuseum.org/research/collect...p;partId=1
The Rudstone La Tène sword showing the remnants of a "C-shaped scabbard that wrapped around the front and edges of an iron sword (British Museum catalog number 1976,0504.17). The back side of the wood core was left open, and the entire scabbard was like covered with leather. Cross-reference with Stead 2006 (sword #186, pp. 188-189 and pl. 8).

http://www.britishmuseum.org/research/collect...tid=827604
A La Tène III sword scabbard made from wood (ash) with a metal locket, transverse metal bands and a chape (British Museum catalog number 1952,0202.2).

http://commons.wikimedia.org/wiki/File:Nineve...g_lion.jpg
A relief from the Neo-Assyrian Nineveh North Palace, showing a sword hung from a wide baldric and then tucked under a belt (700 B.C.).
View user's profile Send private message
