PostPosted: Tue 24 Jul, 2007 1:57 am    Post subject:         Reply with quote

Greg Coffman wrote:
You are either punching with the boss or punching with the edge and neither vary enough by size if the buckler is that round classic shape. F=MA. If you double the mass then you double the force. So a heavier buckler hits harder than a lighter one, all other things constant. But if you keep it light so you can punch twice as fast then you quadruple the force. This isn't perfect but I mean to show that a smaller buckler works just fine.


Actually what you say is the interpretation of another fundamental equation from mechanics, E = 0.5 M V*V, E being kinetic energy, M the mass and V the speed. So indeed if you double the speed, you quadruple the energy, and that is this energy that will cause damage.

Interestingly, putting the energy into the weapon is also what consumes your own energy, so that over a fairly wide range of masses, E will be constant (because there is only so much energy one can give), and V will vary accordingly, making the heavier buckler slower and the lighter buckler quicker. You will also need a greater length of motion to transfer the energy into the buckler when it is heavier.

If the buckler becomes too light, you run into another limit of human body, the speed at wich you can move your arm, so the energy diminishes. But I don't think this happens with bucklers given the weight of even a single boss...

How much damage is done depends on the surface of the contact (which as you rightly point out, does not change much with smaller bucklers), and the relative masses of the buckler and target. A lighter buckler will inflict greater damage to lighter targets. The advantage of the heavier buckler is that it will not only damage the target but also put it in motion, which is a great way to unsettle the opponent...

Sorry for the nitpicking Wink

--
Vincent
Ensis Sub Caelo
View user's profile Send private message Visit poster's website
Richard Wells




Location: Devon,England
Joined: 02 Jun 2007

Posts: 38

PostPosted: Tue 24 Jul, 2007 5:06 pm    Post subject:         Reply with quote

Thanks for the scientific info Vincent.
Some further thoughts on the issue. I think recycling was extremely important. As has often come out in threads, materials and metal were dear, labour was cheap.
Yes small bucklers would be easy to carry but I reckon a boss with a handle would be awkward. The London museum ones that Merv has shown us are both 10 inches plus. 8 or 10 inches would and does hang quite nicely, but a boss with a handle is a lump that rolls around - like hanging a beer mug on your belt - better in your hand !!!!!!!!!
I just feel new or recycled boss, most people would want a bit of material around it and end up with something like the ones pictured.
Richard
View user's profile Send private message
Greg Coffman




Location: Lubbock, TX
Joined: 24 Aug 2006
Reading list: 4 books

Posts: 254

PostPosted: Tue 24 Jul, 2007 6:57 pm    Post subject:         Reply with quote

i understand that my math was rough Wink , but I still think F=MA works. Acceleration is the velocity the buckler is traveling at the point of impact over the amount of time it takes for it to come to rest after that impact. At least, this is the way I think of it. But I appreciate and gain much from your perspective as well.

And what I meant by all of this is that a smaller buckler does not have and advantage as far as power in the punch. Now, if it moves quicker then that is an advantage. You want to be able to get the buckler placed where you want it quickly, whether you are punching or deflecting or binding or whatever. It is also a plus that it doesn't tire your arm out as fast. Of course perhaps I should just "grow stronger." Really, once you learn to intercept the opponents blade accurately with the smaller buckler, it sort of evens out and doesn't seem so small.

For the word of God is living and active. Sharper than any double-edged sword, it penetrates even to dividing soul and spirit, joints and marrow; it judges the thoughts and attitudes of the heart.
-Hebrews 4:12
View user's profile Send private message
Vincent Le Chevalier




Location: Paris, France
Joined: 07 Dec 2005
Reading list: 15 books

Spotlight topics: 1
Posts: 869

PostPosted: Wed 25 Jul, 2007 2:08 am    Post subject:         Reply with quote

Greg Coffman wrote:
i understand that my math was rough Wink , but I still think F=MA works. Acceleration is the velocity the buckler is traveling at the point of impact over the amount of time it takes for it to come to rest after that impact. At least, this is the way I think of it. But I appreciate and gain much from your perspective as well.


Oh sure, F=MA is true. I was specifcally reacting to the point you were making about quadrupling the "force" of impact, which I feel is better explained by energetic considerations. If I understand correctly what you say, you consider that F = M A = M V / dt, with dt the duration of the impact, then assume that dt is simply linked the speed of impact V like that: dt = k / V, which leads to F = M V V / k. Which leads to the quadrupling...

The problem with this approach is that it makes assumptions about the impact that are hard to verify:
1) force is constant during impact
2) damage is proportionnal to force
3) duration of the impact is simply linked to the speed of the object

1) and 3) are likely wrong in real life. 2) is probably not so easy to justify either. All these are hard to observe because the timing of the impact is so short.

So the usual approach used in impact studies is to consider the situation before impact, the situation after impact, and what is conserved between these, to infer what happens during the impact. I'd gladly do the demonstration here, but since it has already been done elsewhere on the web I'll be able to shorten my post Wink : http://hyperphysics.phy-astr.gsu.edu/hbase/inecol.html (I'm linking to inelastic collisions because they are the most damaging for the target, but the elastic case is interesting as well)

But enough off-topic math Big Grin

I completely agree with what you said about the advantages of a quicker buckler. Dynamic defence becomes gradually more important with smaller shields, because it becomes impossible to just "hide behind"... I'll try to keep that in mind since I'm planning on making myself a buckler as well, and I'm still unsure of the size it will have.

Another possible advantage of a small buckler is that it would not hinder movement of your sword and sword arm as much, when using it close to the sword hand as seems to be the case in I.33. Maybe it facilitates some cuts or transitions?

Regards

--
Vincent
Ensis Sub Caelo
View user's profile Send private message Visit poster's website
Daniel Hawley





Joined: 23 Nov 2006

Posts: 4

PostPosted: Sun 29 Jul, 2007 2:00 pm    Post subject:         Reply with quote

Another advantage of the small buckler is that it can be used to grapple. Step inside a blow, and hook it up under your opponent's arm-pit and pull, there's nothing that they can do about that, and if your sword is short enough, or you drop it and pull a dagger it's game over for them.

I have fought with a 10" buckler and a 7" one, and find that I fight better with the 7"

Daniel
View user's profile Send private message
Elling Polden




Location: Bergen, Norway
Joined: 19 Feb 2004
Likes: 1 page

Spotlight topics: 1
Posts: 1,576

PostPosted: Tue 31 Jul, 2007 1:46 pm    Post subject:         Reply with quote

The best way to carry the buckler is by means of a leather strap that is paralel to the handle.
This is passed over the top of the scabbard, before the sword is inserted.

Thus, the sword and buckler can be drawn at the same time. The same can be done with a simple loop around the handle, but this means there is a risk of the buckler bouncing around and twining itself up.

The preserved norwegian bucklers have this kind of suspension.

"this [fight] looks curious, almost like a game. See, they are looking around them before they fall, to find a dry spot to fall on, or they are falling on their shields. Can you see blood on their cloths and weapons? No. This must be trickery."
-Reidar Sendeman, from King Sverre's Saga, 1201
View user's profile Send private message Visit poster's website MSN Messenger
Elling Polden




Location: Bergen, Norway
Joined: 19 Feb 2004
Likes: 1 page

Spotlight topics: 1
Posts: 1,576

PostPosted: Wed 01 Aug, 2007 7:49 am    Post subject:         Reply with quote

A quick sketch showing how and why to carry your buckler for the quick draw Happy


"this [fight] looks curious, almost like a game. See, they are looking around them before they fall, to find a dry spot to fall on, or they are falling on their shields. Can you see blood on their cloths and weapons? No. This must be trickery."
-Reidar Sendeman, from King Sverre's Saga, 1201
View user's profile Send private message Visit poster's website MSN Messenger
Jean Thibodeau




Location: Montreal,Quebec,Canada
Joined: 15 Mar 2004
Likes: 50 pages
Reading list: 1 book

Spotlight topics: 5
Posts: 8,308

PostPosted: Wed 01 Aug, 2007 8:07 am    Post subject:         Reply with quote

Elling Polden wrote:
A quick sketch showing how and why to carry your buckler for the quick draw Happy



Makes a lot of practical sense and shows that sometimes it's the little things that make the difference for easy usage.

I wonder how much documentation shows or talks about this ? Might be a case of something being so well known and obvious in period that nobody would even bother mentioning in in an instruction text on the use of the buckler or in anything else really.

Glad to know as I can now make the necessary leather loop for my buckler. Cool

You can easily give up your freedom. You have to fight hard to get it back!
View user's profile Send private message
Bram Verbeek





Joined: 27 Mar 2007

Posts: 217

PostPosted: Wed 01 Aug, 2007 12:51 pm    Post subject:         Reply with quote

maybe impulse (=mv) or inertia will add to the quotation as well. Since the human muscles can only generate a certain speed before needing to cheat, if you wish to have enough impulse to change the course of something heavy, you will have to use something heavy to change it with (there is a reason a baseball bat, whose purpose is to change the direction of a baseball, is not made out of a tube, even if vibrations are not counted). As you may have noticed, impulse looks like energy divided by speed, so the total amount of energy needed to generate more impulse drops with an increase in mass.

just my € 0,02
View user's profile Send private message
Richard Wells




Location: Devon,England
Joined: 02 Jun 2007

Posts: 38

PostPosted: Wed 01 Aug, 2007 2:47 pm    Post subject:         Reply with quote

Elling,
I was too sure about your post and how the buckler fitted over the scabbard, But your sketch is brilliant.
All is clear now.
I think Jean is right - its probably the sort of thing that is so simple and common , no one thought to write it down !
Thanks
Richard
View user's profile Send private message
Hugo Voisine





Joined: 25 Feb 2006
Reading list: 7 books

Posts: 336

PostPosted: Wed 01 Aug, 2007 8:02 pm    Post subject:         Reply with quote

Thanks for the sketch Elling. Wink

Have you tried to use this kind of suspension for "real" ?

« Que dites-vous ?... C'est inutile ?... Je le sais !
Mais on ne se bat pas dans l'espoir du succès !
Oh ! non, c'est bien plus beau lorsque c'est inutile ! »
View user's profile Send private message
Nils Anderssen




Location: Drammen, Norway
Joined: 08 Dec 2005

Posts: 61

PostPosted: Thu 02 Aug, 2007 3:24 am    Post subject:         Reply with quote

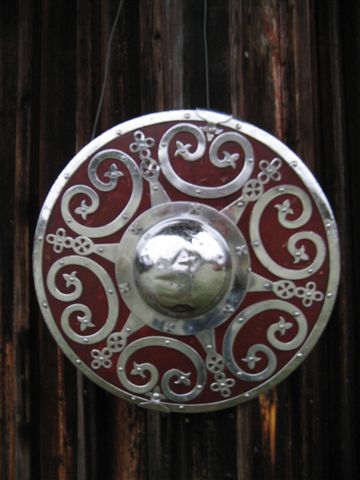

The buckler underneath is a reproduction of one of the four finds of bucklers in Norway from the 14th century. On the picture form the back you can see how the leather strap is fithed to the handel. And, yes, it works in real life. If you just put a leather cord around the handle it would just cause problems since the buckler can then turn around.

N.



 Attachment: 37.39 KB


 Attachment: 37.5 KB

View user's profile Send private message
Jessen Klaus




Location: Denmark/ Fredericia
Joined: 27 Feb 2004

Posts: 64

PostPosted: Thu 02 Aug, 2007 3:49 am    Post subject:         Reply with quote

Nice buckler Niels !
What are the size on this buckler ?

Venlig hilsen
Klaus

Best regards
Klaus

Swords on waiting list
The Hauptmann,The Markgraf,
The Munich,The Knech,The Maximilian & The Dane

Sword's I'm selling/trading
Triton from Odinblades
View user's profile Send private message MSN Messenger
Nils Anderssen




Location: Drammen, Norway
Joined: 08 Dec 2005

Posts: 61

PostPosted: Thu 02 Aug, 2007 11:37 am    Post subject:         Reply with quote

Its 35,5 cm in diameter, about the same size as the last two bucklers that Merv Cannon posted in his post. Those are kept in the National Museum in Copenhagen, but are probably produced in Norway.

So, the buckler are not what you would call small... but they are nice anyway Happy

Another reproduction and some pictures of the the four bucklers form Norway can be foud here:

http://forums.armourarchive.org/phpBB2/viewto...highlight=

N.
