[Lukas MG]

Hey guys
I know this is a historically orientated forum but I don't know where else to post this if not here as I cannot post in the the maker's subforum and would still like to share this with you.I hope you don't mind some modern flavour. Mods, please feel free to move this or do with it whatever to deem appropriate.
I suppose one could say that the blade was at least inspired by historical swords, namely kopis, yatagan and filipino weapons.

Anyway, I'm proud to present you "Zorn".
This sword was made during a two week scrap yard project on SBG. The idea was to use only what one had lying around to make the kind of weapon one would want to carry in an apocalyse situation. This is what I came up with:





Stats:
Steel: 56Si7 (for Americans 9260) hardened to 58HRC at the edge, the spine is a bit softer, ca 55HRC, base and tang drawn back to the low 40s.
Overall length: 72cm (28,4”)
Blade length: 55cm (21,6”)
Grip length: 14cm (5,5”)
Blade width at base (where edge starts): 6cm (2,3”)
Blade width 1” before tip: 1cm (0,4”)
CoB: 10,5cm below guard (4,1”)
CoP: will be discussed in the vid, pretty much the upper half of the blade
Blade thickness: 5,5mm (0,210”) at base tapers in a convex curve to 2,5mm (0,100”) before tip.
Weight: 785g (1,7lb)
Handle scales are some unknown wood with leather liners and four steel pins.



When I designed this sword, I wanted to create the best tactical allrounder I could think of. It is not meant to be a deluxe machete but purely a fighting sword that could in some occasions double as a tool. It is however not designed for chopping wood, etc. The sword has a very sturdy blade, backed up by a thick spine that doesn’t taper in thickness until the false edge starts. The upper half features a convex distal taper. So this sword is extremely rigid and has practically no flex. The zero bevel grind gives a very sharp edge with little “niku” but the high hardness and toughness of the steel give more than sufficient durability and edge retention. The curvy design focuses the widest section of the blade right at the CoP where most cutting is done. Needless to say, the curved blade cuts very easily. The point is quite thick and should be sturdy enough for any reasonable thrusting tasks.
The integral guard keeps the hand from slipping onto the blade and the rather sizable pommel would make a nice striking surface aswell. While the grip and pommel design is obviously made for one hand, I can grip the sword with both hands, the second hand wrapping partly around the pommel. The point of the pommel nestles in just between the middle finger and the ring finger.

I went for an old, used but well cared for look on this blade, deliberately leaving some scratches from drawfiling in the spine and antiquing spine and handle with vinegar and salt. It's very hard to see in the pics but very noticeable in person. The blade bevels itself have some minor pitting aswell. That in fact was more of an accident but I like the look well enough and it fits with the theme. If I every grow tired of it I can sand it off.



Handling wise, I’m really happy with how it turned out. It’s very light and fast but still has a pleasant blade presence that does encourage a cutting motion over thrusting. It thrusts well enough but is not primarily balanced for it. The tip stays however in line with the grip and doesn’t wander. Overall, this blade is as easy to control as the light weight suggests but cuts a lot better than its size would make you think.



Enough talking, let’s see what this blade can do!!
Here’s some hard target cutting. I have some light target cutting, too but it’s nothing really spectacular, just a nice sharp blade effortlessly cutting tetra packs and bottles. If you want to see that too, tell me but I feel hard target cutting is what shows this blade’s potential the most.
Here we go:
http://forum.sword-buyers-guide.com/viewtopic.php?f=22&t=6358

As you see, this blade cuts extremely well for such a light sword. Mats were very easy, as was the rest. The hardwood gave me some trouble because I couldn't get it fixed in the stand it was so hard, everything had to be spot on to cut through. But overall I'm very, very happy with how this blade performs!

I’m not entirely sold on the wooden grip; it’s very comfy but grays quite a bit. Hmm, I might add a leather wrap in the middle where my hand touches it the most.
Anyway, that’s it, I hope you like it! It's something else for sure. Comments, etc all welcome!!

[William P]

whats the purpose of tha notch above the integral guard?
it reminds mequite abit of hadhafang wielded by arwen in LOTR.


i also notice it flares outward on the spine creating a sort of bump, how did that come about is that part of the backedge profile?

[Lukas MG]

The notch is there for mainly aesthetic purposes even though it also makes trapping an opponents blade possible I suppose. Otherwise it saves some weight aswell compared to a closed line all the way up to the guard.

The "bump" aesthetically counter balances the other high point where the handle scales begin, therefore marking the second end of the spine's curve and also the begin of the back edge. If you look closely, the blade has no straight line, everything is curved, there are no corners. The guard with it's more angular shape underlines the blade's flowing shape.

[Gene W]

[Randall Pleasant]

Lukas

Your blade is actually a form of messer (large knife) since it does not have a true pomel like a sword. Being a messer is not a bad thing, I'm just stating what it is. As a practitioner of Medieval and Renaissance Martial Arts I rather have a more tradtional messer. But over all I like your blade.

Ran Pleasant
ARMA DFW

[Lukas MG]

Thanks guys.
Yeah I suppose it doesn't qualify as a sword but since these modern bladed weapons are generally called tac swords, I just went with that.

[Glen A Cleeton]

Hi Gene

[Jeffrey Faulk]

[Gene W]

[Gene W]

[quote="Jeffrey Faulk"]

[Jean Thibodeau]

[Glen A Cleeton]

Hi Gene

[Lukas MG]

Thanks for all the kind comments.

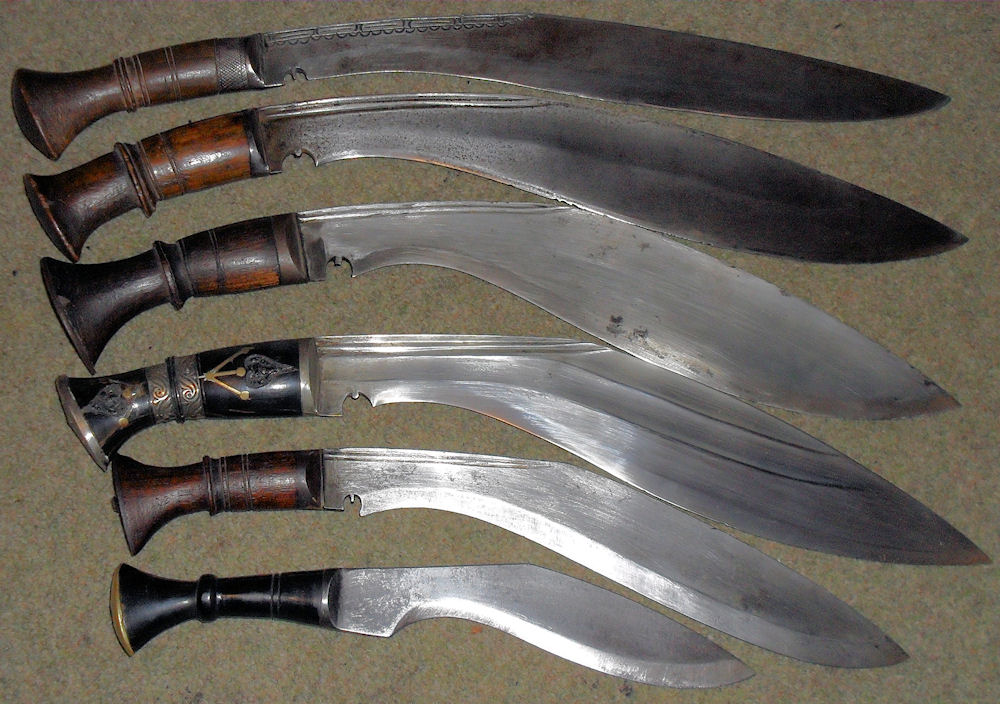

Never though my sword would provoke such an interesting discussion about kukris

[Gene W]

[Gene W]

[Geoff Wood]

[Gene W]
