 Posted: Mon 14 Dec, 2009 11:18 am Post subject: Aegean Bronze Age Sword Charts w/ Abstract from Sandars |
 |
|
Hi All...

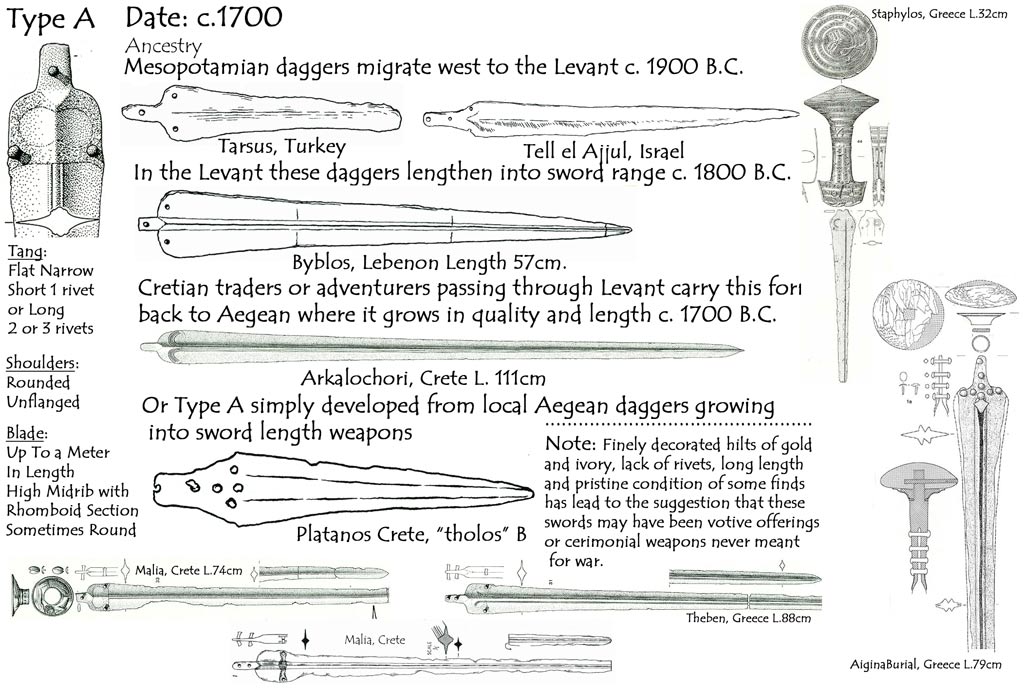

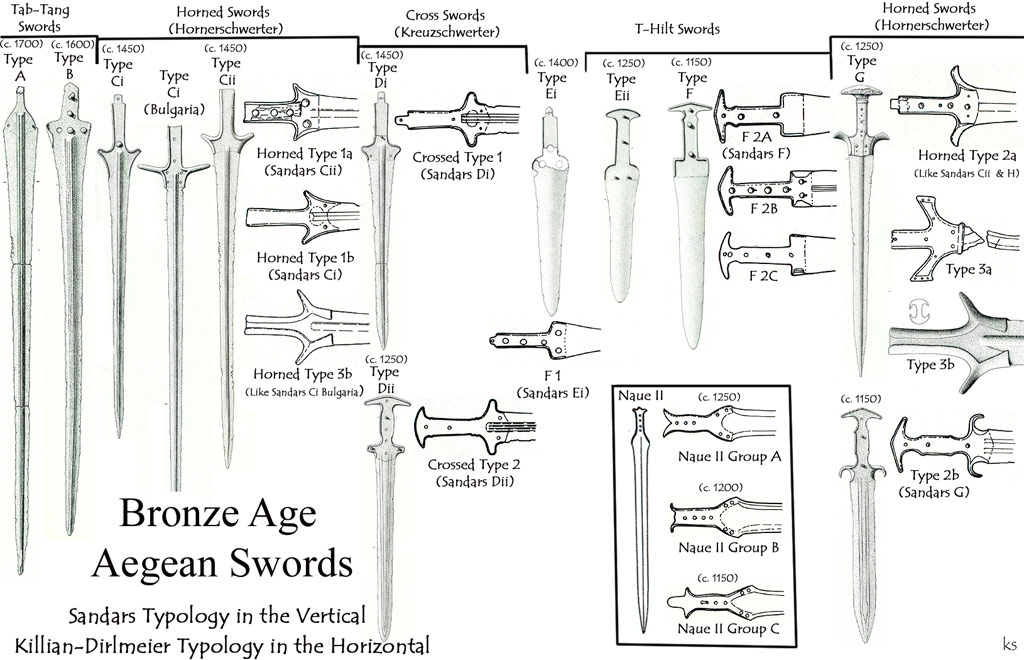

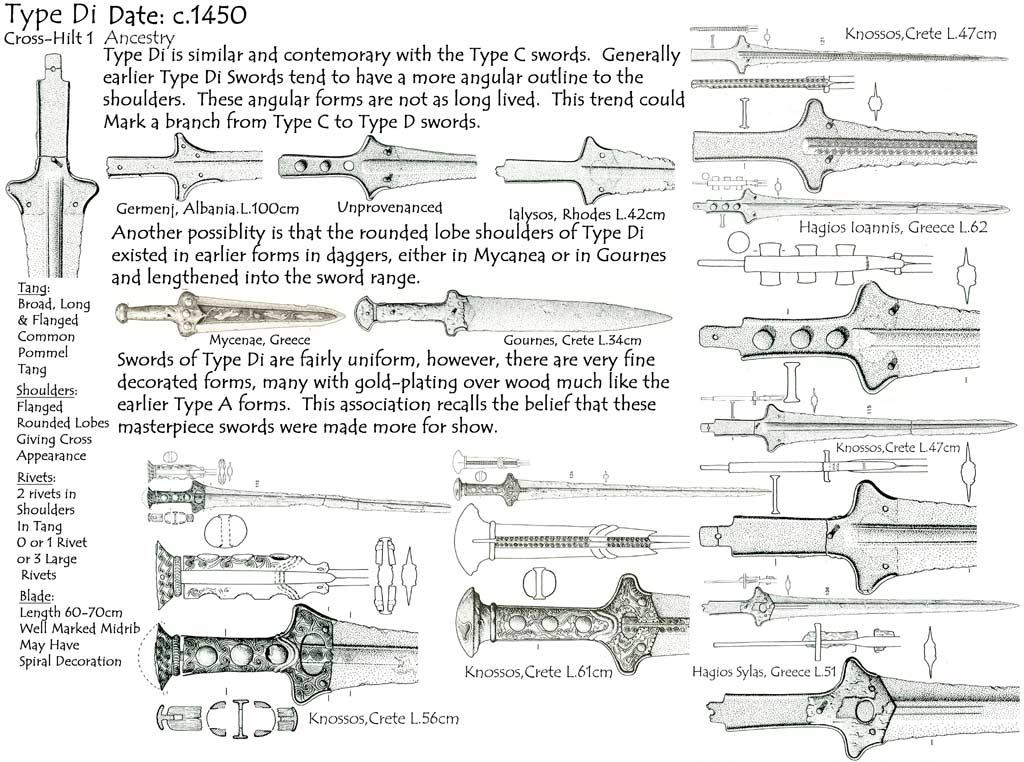

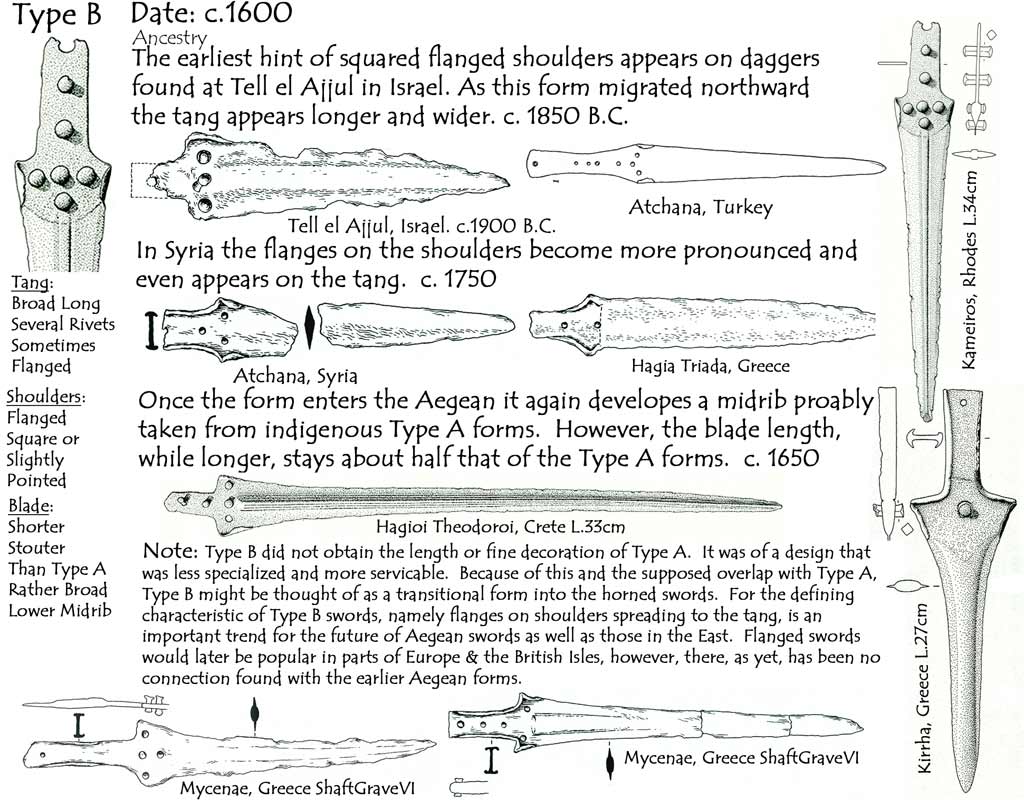

I wanted to share the Aegean Bronze Age Sword typology chart I put together a few years ago trying to combine the classification systems of N.k. sandars and Imma kilian-Dirlmeier into one graphic. I have also developed charts for each type category. On these charts I have tried to abstract some of the conclusions from N.K. Sandars landmark articles on the subject published in the American Journal of Archeology (AJA).
N.K. Sandars, "The First Aegean Swords and Their Ancestry" (in AJA v.65) and
N.K. Sandars, "Later Aegean Bronze Swords" (in AJA v.67)
The information on the Kilian-Dirlmeier classification system, as with many of the examples in the charts, are from
Imma Kilian-Dirlmeier, "Die schwerter in griechenland, Bulgarien und Albanien" in Prahistorische Bronzefunde, abteilung IV Band 12
I invite any corrections or suggestions for improvement in these charts. (I have these stored in photoshop and can make changes easily,)
I believe that swords of the Aegean Bronze Age (as with those in the Nordic Bronze Age) are some of the the most beautiful and distinct swords ever discovered.
I hope these charts may be of assistance in helping you understand the theories on origins and trends in the development of Aegean Bronze Age swords.
Take care,
ks
