PostPosted: Fri 08 Apr, 2016 5:47 pm    Post subject: Strength of flutes & ridges? How does it work?         Reply with quote

How much does flutes and ridges give strength to armor and metals? I ask because I been told it can go up to about twice the strength of the steel or metal depending the about of flutes and ridges it has, and as low as about 1/5th stronger if it has very little. Can anyone tell me if this is true or how much stronger the metal gets?





We also see it on Roman helmets.


My point is we see it everywhere and is applied on it when it can be. We also see it in tin cans as well as bottle waters.

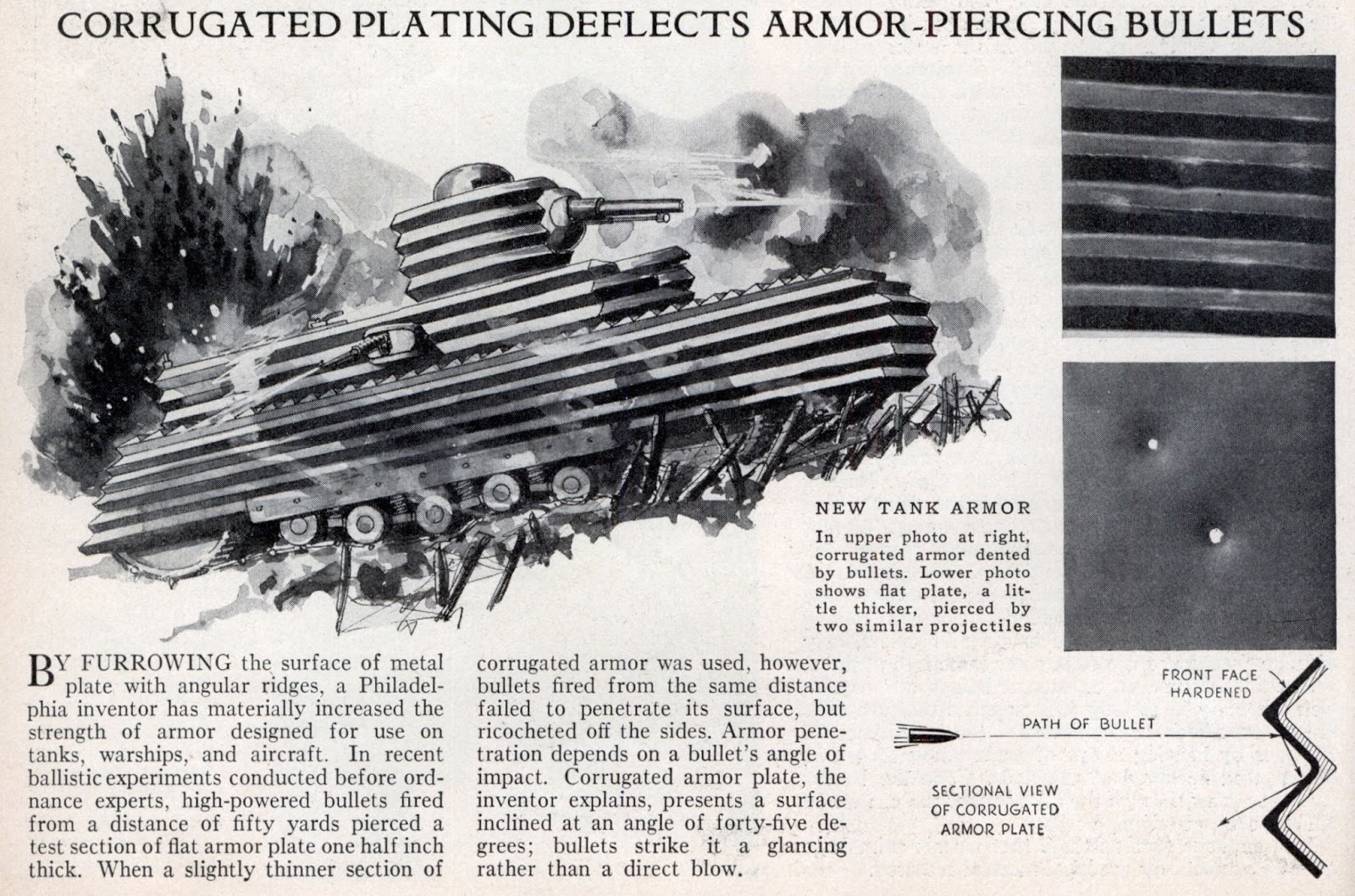

Does this look familiar?

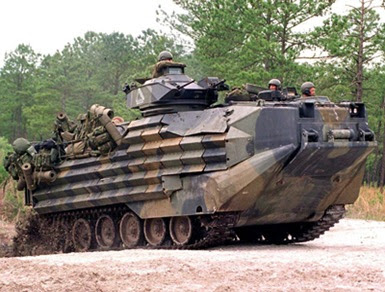

This is not plate armor but I cannot help it but notice how the concept is more or less the same to European plate armor.








This also shows that the flutes and ridges itself can help in the defecting of attacks; I am assuming that this has a similar effect in Gothic and Maximilian armors as well.

What are your thoughts people?

Thanks!


Last edited by Gerald Fa. on Fri 08 Apr, 2016 5:57 pm; edited 2 times in total
View user's profile Send private message
Mario M.




Location: Croatia
Joined: 31 Mar 2016

Posts: 107

PostPosted: Fri 08 Apr, 2016 6:17 pm    Post subject:         Reply with quote

You are comparing stuff that is not really connected.

Fluting on plate armor was done for entirely different reasons than on bottles and tanks Big Grin

I am not sure about how it effects penetration from projectiles or even thrusts, but, from my understanding, it is done because of structural dynamics of surfaces.

Meaning, it's main purpose is to prevent the surface of the plate from caving in or denting from a strike.

“The stream of Time, irresistible, ever moving, carries off and bears away all things that come to birth and plunges them into utter darkness...Nevertheless, the science of History is a great bulwark against this stream of Time; in a way it checks this irresistible flood, it holds in a tight grasp whatever it can seize floating on the surface and will not allow it to slip away into the depths of Oblivion." - Anna Comnena
View user's profile Send private message Send e-mail
Jared Smith




Location: Tennessee
Joined: 10 Feb 2005
Likes: 1 page

Spotlight topics: 3
Posts: 1,532

PostPosted: Fri 08 Apr, 2016 9:52 pm    Post subject:         Reply with quote

They actually "could" all be very related. Fluting on armor should add stiffness with less weight than simply increasing material thickness. If it is plain mild steel, the fluting or cold working could increase ultimate strength as well. I doubt the ridges in the bottles were formed cold though. Polymers and low carbon metals can actually be stiffened, and actually have strength increases from cold working.
https://www.nde-ed.org/EducationResources/CommunityCollege/Materials/Structure/strengthening.htm

Absence of evidence is not necessarily evidence of absence!
View user's profile Send private message
T. Kew




Location: London, UK
Joined: 21 Apr 2012

Posts: 256

PostPosted: Sat 09 Apr, 2016 4:08 am    Post subject:         Reply with quote

The short answer here is it's much the same principle as an I-beam (or a H-beam, which is clearer in this font): fluting something gives it more stiffness for its weight, because it is effectively thicker.

So corrugated iron is very stiff in the direction it's been fluted, because it's effectively an inch thick, instead of being merely a few millimetres thick.

This will not make it as sturdy as something which is actually that thick and solid, but it does keep the mass down.

In general, for a given weight you'll make a stronger structure by having it be fluted or corrugated. For a given thickness, you'll make a stronger structure by having it be solid and uniformly that thickness. Of course, the limiting factor for armour is normally weight, which is why fluting can be quite beneficial as a design feature.

This is also why bottles are typically fluted/not just cylinders - they're much stronger and more crush resistant, for no additional mass. To experiment with this, go find a couple of plastic bottles at your local store: one should have walls as straight as possible, and one should have a more complex shape with indentations and so on. Once emptied, you should find the former is much easier to crush in.

HEMA fencer and coach, New Cross Historical Fencing
View user's profile Send private message
Michael Beeching





Joined: 22 Jan 2014
Reading list: 2 books

Posts: 271

PostPosted: Sat 09 Apr, 2016 1:01 pm    Post subject:         Reply with quote

T. Kew has stated this very efficiently.

On a more technical level, what is happening with flutes & corregations is the material's second moment of area is being increased in one or more plane in 3D space. The greater the second moment of area, the more resistive to fexure an object is.

I want to comment that T. Kew has brought up a very significant point: that solid objects are in theory stronger than corregated or fluted ones - the reason we want to avoid making such objects when possible is that the gain in mass is often unjustified in comparison to the strength gained by using such a solid object. This general understanding of things, which is more common than you think, has ironically lead to the misconception that fullers and I-beams are somehow stronger than solid pieces of a given material. As already stated, the fullers and the I-beams just let the thickness be retained while reducing the mass - the extra strength from the mass would be a marginal factor in comparison to the weight gain.

Now, one thing which might happen with a fuller or a flute in an object is some additional stress hardening when flexed. This could make the lighter object stronger than a solid one to a degree, at the price of material fatigue and increased brittleness.
View user's profile Send private message
Timo Nieminen




Location: Brisbane, Australia
Joined: 08 May 2009
Likes: 1 page
Reading list: 1 book

Posts: 1,504

PostPosted: Sat 09 Apr, 2016 6:25 pm    Post subject:         Reply with quote

Mario M. wrote:
I am not sure about how it effects penetration from projectiles or even thrusts, but, from my understanding, it is done because of structural dynamics of surfaces.

Meaning, it's main purpose is to prevent the surface of the plate from caving in or denting from a strike.


Yes. It won't do much, if anything, against penetration (and might make it easier, by making it less likely that an arrow point will slide off). But having your armour dented so that a joint jams would be a Bad Thing.

Plate armour on the arms and legs is often quite thin, and far from dent-proof if it was just flat.

Mario M. wrote:
Fluting on plate armor was done for entirely different reasons than on bottles and tanks :D


... but for the same reason as on metal cans: preventing dents.

"In addition to being efficient, all pole arms were quite nice to look at." - Cherney Berg, A hideous history of weapons, Collier 1963.
View user's profile Send private message Visit poster's website
Bob Haynes




Location: Mount Perry, Ohio
Joined: 06 Apr 2008
Likes: 16 pages

Posts: 57

PostPosted: Sat 09 Apr, 2016 9:39 pm    Post subject:         Reply with quote

T. Kew wrote:


This is also why bottles are typically fluted/not just cylinders - they're much stronger and more crush resistant, for no additional mass. To experiment with this, go find a couple of plastic bottles at your local store: one should have walls as straight as possible, and one should have a more complex shape with indentations and so on. Once emptied, you should find the former is much easier to crush in.


Nice points on the armor, but although not all that important, I have to disagree about the bottles on the crushing resistance. ...At least for Kroger brand water bottles.
They are specifically designed with fluted ribs so one can "Crush 2 Conserve" as it says right on the bottle. Easy to flatten with your hands, no need for stomping.

Your point still holds validity, durability for less material. The plastic is thin, probably as thin as they could reasonably make it, even the cap is barely more than a disk.
View user's profile Send private message
Luka Borscak




Location: Croatia
Joined: 11 Jun 2007
Likes: 7 pages

Posts: 2,307

PostPosted: Sun 10 Apr, 2016 1:58 pm    Post subject:         Reply with quote

Bob Haynes wrote:
T. Kew wrote:


This is also why bottles are typically fluted/not just cylinders - they're much stronger and more crush resistant, for no additional mass. To experiment with this, go find a couple of plastic bottles at your local store: one should have walls as straight as possible, and one should have a more complex shape with indentations and so on. Once emptied, you should find the former is much easier to crush in.


Nice points on the armor, but although not all that important, I have to disagree about the bottles on the crushing resistance. ...At least for Kroger brand water bottles.
They are specifically designed with fluted ribs so one can "Crush 2 Conserve" as it says right on the bottle. Easy to flatten with your hands, no need for stomping.

Your point still holds validity, durability for less material. The plastic is thin, probably as thin as they could reasonably make it, even the cap is barely more than a disk.


Fluted cans are easier to crush top to bottom. From the sides they are harder to crush if fluted, just like armour.
