Hi Guys,

I have had an enquiry to make a crossbow suited to 1066-1300 and I am not sure what to make. Obviously the period is too long to be covered by a single bow, but what I am pondering about are rising peg trigger systems.

Rising peg systems are beloved by anyone reenacting Norman conquest period and shortly after, but I have not actually seen any evidence for them or why people think this is the system used at the time. I am not saying it was not used, but does anyone have any references showing or talking about them?

Conversely, there is a crossbow nut found in Scotland I believe dated around 450-500 if I remember correctly, so the rotating nut system does appear to have been in use.

On other matters, my customer asked what was revolutionary about the Genoese bows at Crecy. I had not heard that the bows were notably new at Crecy - any thoughts?

Any leads would be welcome.

Tod

www.todsworkshop.com
www.todcutler.com
www.instagram.com/todsworkshop
www.facebook.com/TodTodeschini
www.youtube.com/user/todsstuff1
View user's profile Send private message Visit poster's website
Sean Flynt
myArmoury Team


myArmoury Team

Location: Birmingham, Alabama
Joined: 21 Aug 2003
Likes: 10 pages
Reading list: 13 books

Spotlight topics: 7
Posts: 5,910

PostPosted: Wed 22 Oct, 2014 3:22 pm    Post subject:         Reply with quote

Some of our Appalachian bows might use that system, but I don't recall and don't have the book in front of me. They're pretty simple bows, preserved in our remote mountains along with 16th c. Anglo-Scots language, music, etc.

http://www.myArmoury.com/talk/viewtopic.php?t=19602&view=next

-Sean

"Everywhere I have searched for peace and nowhere found it, except in a corner with a book"- Thomas a Kempis (d. 1471)
View user's profile Send private message Send e-mail
Mart Shearer




Location: Jackson, MS, USA
Joined: 18 Aug 2012

Posts: 1,281

PostPosted: Wed 22 Oct, 2014 9:15 pm    Post subject:         Reply with quote

The first I had seen of them was in Osprey's MAA 231 French Medieval Armies 1100-1300. On p.11 Dr. Nicolle includes a line drawing with the description,

Quote:
(A) Reconstruction of a
small 11th century hunting
crossbow found at
Colletière in the Dauphiné.
The stock and bow are
both about 50cm long. The
trigger is on the top and
the string is released by the
upwards motion of a small
peg.


http://www.isere-patrimoine.fr/2924-les-fouil...avines.htm
The stock and other small pieces of the crossbow from Colletière à Charavines are seen at the top of this small photograph.


The site is believed to have been abandoned around 1040. I'm not altogether sure this is a weapon of war rather than for hunting. The reconstruction of a "scale armor" from the site left me dubious of their interpretation. This drawing makes it look more like the trigger itself pushes the string directly, rather than with a peg.
http://www.villaggiomedievale.com/forum/topic...PIC_ID=382

ferrum ferro acuitur et homo exacuit faciem amici sui
View user's profile Send private message
Robert MacPherson
Industry Professional



Location: Jeffersonville USA
Joined: 27 Feb 2008

Posts: 141

PostPosted: Thu 23 Oct, 2014 6:05 am    Post subject:         Reply with quote

Tod,


The history of the development and continued use of different crossbow locks is a muddy one. There is a tendency to think of the rising pin lock as primordial, and its continued use into modern times as atavistic. I am not sure that I hold with that. I suspect that the rising pin and its variations is a thing that just keeps getting reinvented by folks as a low tech lock that works and is easy to make.

There is a chapter in Joesf Alm's book( European Crossbows: a Survey by Josef Alm, Royal Armouries, Monograph 3, H. Bartlet Wells trans., G.M. Wilson ed , 1994). that deals with what he considers "primitive" crossbows.

If you don't have a copy, I'll scan the relevant pages for you.

As far a Crecy is concerned..... I don't think that there was anything new or strange about the crossbows there. The oft repeated idea that they were hampered by their bow strings getting wet is a bit dodgy. I suspect that the problem was with their composite bows going limp because of the hygroscopic nature of the glue. That is to say the "cords of their bows" refers to the sinews in the composite bows, and not the strings. In my experience, sinew backed bows are very sensitive to humidity changes, and perform badly when damp.

Mac

Robert MacPherson
http://www.lightlink.com/armory/
http://billyandcharlie.com/
View user's profile Send private message Visit poster's website
Robert MacPherson
Industry Professional



Location: Jeffersonville USA
Joined: 27 Feb 2008

Posts: 141

PostPosted: Thu 23 Oct, 2014 6:38 am    Post subject:         Reply with quote

Mart,

That's an interesting find!

It shines a light on some of the earlier illustrations of crossbows, If you took the entire lock mechanism and rotated it 180 degrees, so that the trigger stuck more or less straight down out of the bottom of the tiller, you would end up with something like this image.



Mac

Robert MacPherson
http://www.lightlink.com/armory/
http://billyandcharlie.com/
View user's profile Send private message Visit poster's website
Leo Todeschini
Industry Professional



Location: Oxford, UK
Joined: 12 Nov 2006

Spotlight topics: 1
Posts: 1,571

PostPosted: Thu 23 Oct, 2014 11:49 am    Post subject:         Reply with quote

Thanks.

I think you are right in that rising peg or similar systems are simply reinvented or used by people who have a low budget or low technology level. They are indeed seen from Africa to the Appalacians in a pretty similar format. I just feel it is wrong to say that the only bows around circa 1066 were these, especially as I have not seen evidence to show that.

The Colletière à Charavines bow was one I have not seen, so thanks for that Mart, but my gut feeling is that this is not a war bow and is as described a hunting bow and personally I would put that with the low budget/low technology class of bows and it could be anywhere up to 1800 if the back woods were remote enough.

On the wet string front, I agree with you Robert. In my experience of natural fibres, they tend to contact when wet and so rather than going limp (unlikely with very heavily waxed bow strings) they would in fact tighten were this to happen, so the likely guilty partly is the rather sensitive composite bows.

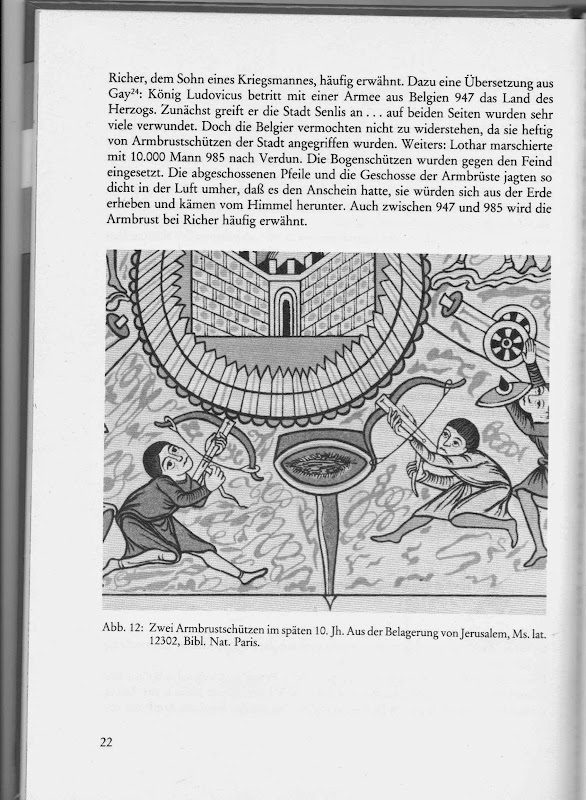

The last image you showed is also interesting in that there appear to be a rotating nut bow and bow with another system - perhaps a rising peg?
